How to display material appearance in COMSOL 5.6?

Posted 2021年9月1日 GMT+2 14:32Interfacing, MaterialsVersion 5.62 Replies

Hertz Tsi
Send Private Message Flag post as spam

Please login with a confirmed email address before reporting spam

In earlier versions, this can be done in Preference->Graphics and Plot Windows, but in 5.6 where is it?

2 Replies Last Post 2021年9月1日 GMT+2 16:28
Magnus Ringh COMSOL Employee

Please login with a confirmed email address before reporting spam

Posted: 3 years ago 2021年9月1日 GMT+2 15:33

Hi,

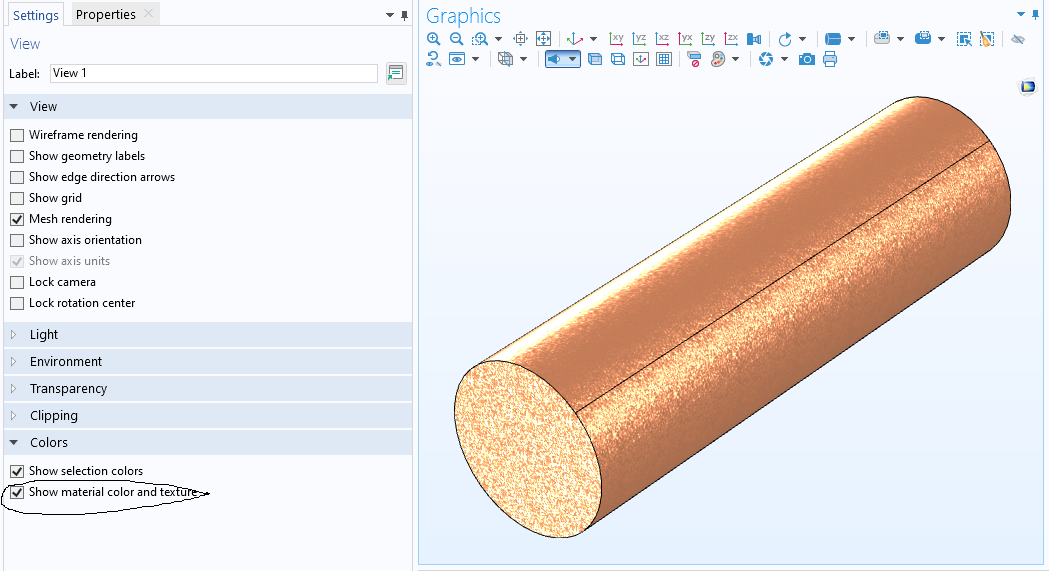

You do it in the Settings window for theViewnode (see the attached screenshot), but you can also do it from theColorsmenu in theGraphicstoolbar above the plot. In the plot I have chosenRose gold (dented)from theMaterial typelist in the Settings window for the material.

Best regards, Magnus

Hi, You do it in the Settings window for the **View** node (see the attached screenshot), but you can also do it from the **Colors** menu in the **Graphics** toolbar above the plot. In the plot I have chosen **Rose gold (dented)** from the **Material type** list in the Settings window for the material. Best regards, Magnus

Attachments:

Hertz Tsi
Send Private Message Flag post as spam

Please login with a confirmed email address before reporting spam

Posted: 3 years ago 2021年9月1日 GMT+2 16:28

Thank you, Magnus! The setting is so flexible.

Thank you, Magnus! The setting is so flexible.
