Create Hollow Cylinder

Posted 2014年6月2日 GMT+2 21:47Geometry3 Replies

Daniel Frantz
Send Private Message Flag post as spam

Please login with a confirmed email address before reporting spam

I need to create a hollow cylinder surrounding a separate cylinder. How do I do this?

Thanks in advance,
Daniel Frantz
3 Replies Last Post 2014年6月5日 GMT+2 20:26
Lasse Murtomäki
Send Private Message Flag post as spam

Please login with a confirmed email address before reporting spam

Posted: 1 decade ago 2014年6月5日 GMT+2 10:44
I would have a Work plane, draw two rectangles and rotate the workplane. See attached.

Best
Lasse
I would have a Work plane, draw two rectangles and rotate the workplane. See attached. Best Lasse

Attachments:

Magnus Ringh COMSOL Employee

Please login with a confirmed email address before reporting spam

Posted: 1 decade ago 2014年6月5日 GMT+2 11:03
Hi,

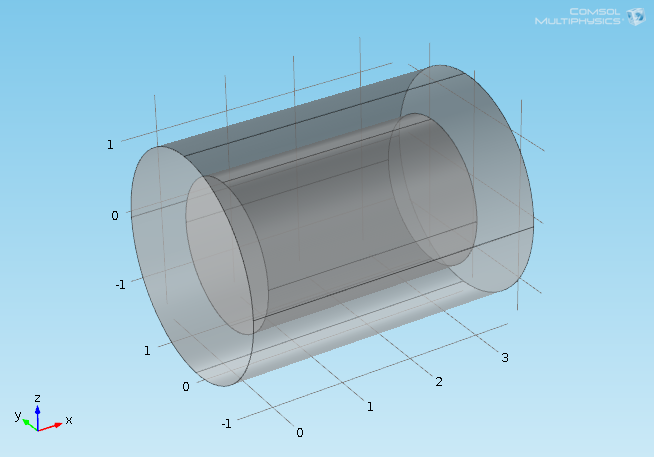

You can create the outer hollow cylinder using the Surface type instead of the default Solid type. The outer cylinder then consists only of the cylinder surface. You can close the ends, if desired, using Cap Faces features if the license includes the CAD Import Module or by defining work planes at each end where you add a circle that matches the end of the cylinder. Note that the interior of the hollow cylinder is void, so you cannot define any physics in that part of the geometry.

Best regards,
Magnus Ringh, COMSOL
Hi, You can create the outer hollow cylinder using the Surface type instead of the default Solid type. The outer cylinder then consists only of the cylinder surface. You can close the ends, if desired, using Cap Faces features if the license includes the CAD Import Module or by defining work planes at each end where you add a circle that matches the end of the cylinder. Note that the interior of the hollow cylinder is void, so you cannot define any physics in that part of the geometry. Best regards, Magnus Ringh, COMSOL

Attachments:

Daniel Frantz
Send Private Message Flag post as spam

Please login with a confirmed email address before reporting spam

Posted: 1 decade ago 2014年6月5日 GMT+2 20:26
Thank you for your help! I was unfamiliar with the revolve function and your advice allowed me to build my model.

Thanks again!
Daniel Frantz
Thank you for your help! I was unfamiliar with the revolve function and your advice allowed me to build my model. Thanks again! Daniel Frantz
