Domain decomposition for hyperbolic equations
mikhael balabane, universite paris 13
Domain decomposition for hyperbolic equations
Mikhael Balabane , Université Paris 13
Stephan Savarese, COMSOL France

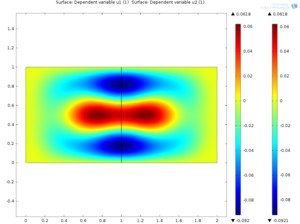

This model shows how to solve an iterative algorithm using domain decomposition techniques.
Coefficient Form PDE u1 (c4) solves for u1
Coefficient Form PDE u2 (c) solves for u2
Coefficient Form PDE v1 (c2) stores u1 into v1
Coefficient Form PDE v2 (c3) stores u2 into v2
Then compute and iterate as follows:
1. Compute Init U
2. In LOOP > Step1 > Values of Variables not solved for : select Solution : Init U , then Compute
3. In LOOP > Step1 > Values of Variables not solved for : select Solution : LOOP, then Compute as many times as necessary to converge
User Comments
|
Ivar KJELBERG Nov 26, 2012 at 8:30am UTC |
|
One need to read the comment all to the end: where you remind us that for LOOP on the first iteration one need to set the Values of Dependent Variables, not solver for to point to Init U, then for the second run select LOOP |
|
STS Apr 19, 2013 at 3:52pm UTC |
|
Corresponding author: balabane[at]math.univ-paris13.fr |
