Contour Plot lines: why different thickness / color shade
Posted 2016年8月29日 GMT+2 21:18Low-Frequency Electromagnetics, Results & VisualizationVersion 5.10 Replies
Please login with a confirmed email address before reporting spam
Hi,
I am trying to visualize my results with Comsol 5.1 and the AC/DC Module in 2D with a uniform colored Contour Plot. I want to show the Electric Potential across my model.

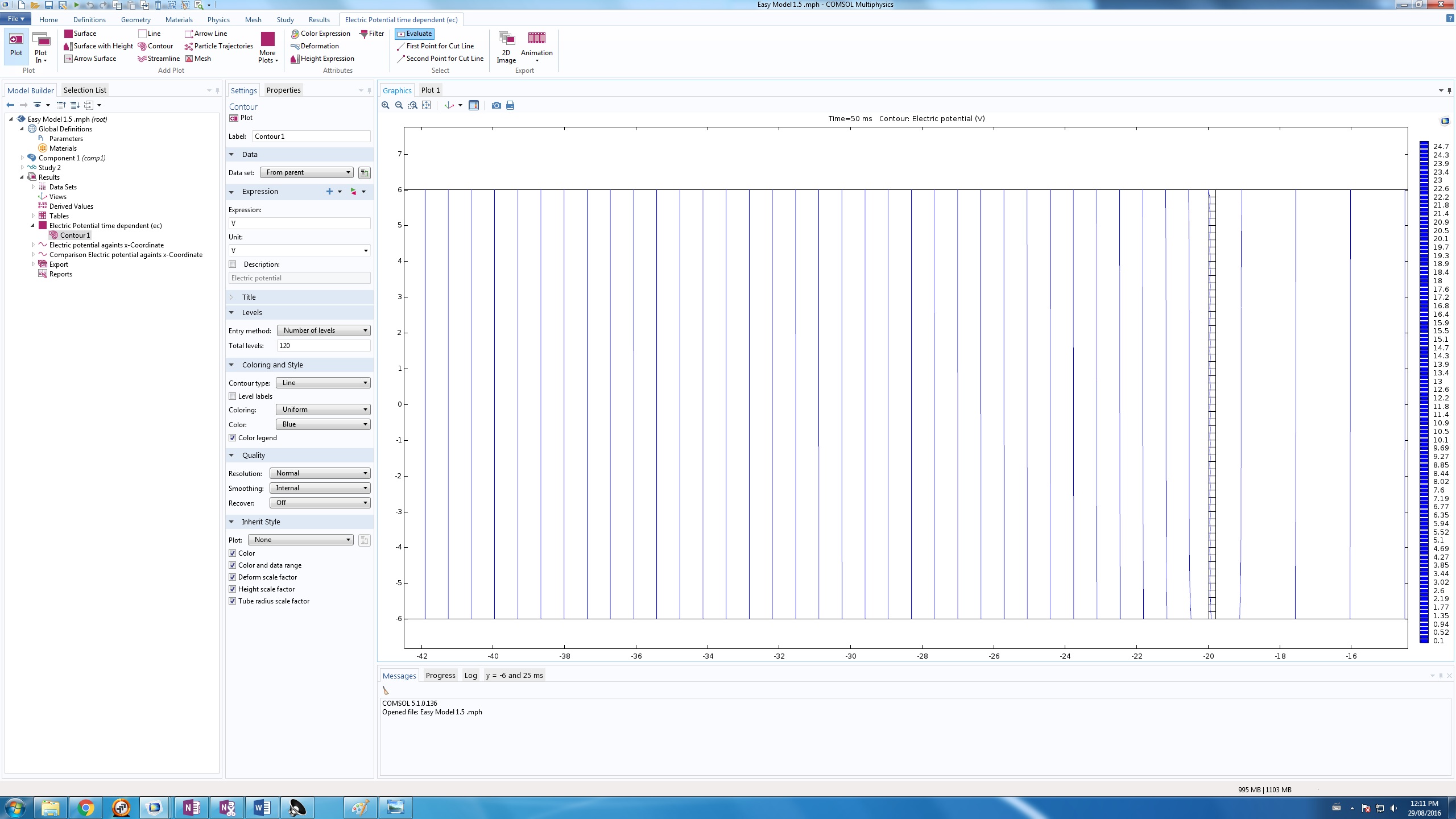

But the lines are varying in thickness or rather in color shade. I chose a uniform color but you can see which makes it look like there is another Plot in the background. I tried change a bunch of settings but nothing makes the lines all look the same.
Why is there the difference and how can I get rid of it?
Thanks, Vanessa
I am trying to visualize my results with Comsol 5.1 and the AC/DC Module in 2D with a uniform colored Contour Plot. I want to show the Electric Potential across my model.
But the lines are varying in thickness or rather in color shade. I chose a uniform color but you can see which makes it look like there is another Plot in the background. I tried change a bunch of settings but nothing makes the lines all look the same.
Why is there the difference and how can I get rid of it?
Thanks, Vanessa
Attachments:
