rotational constraint
Posted 2023年9月24日 GMT+2 00:30Structural Mechanics, Equation-Based Modeling, Structural Dynamics2 Replies
Please login with a confirmed email address before reporting spam
I am trying to do a static analysis of a cantilever beam whose one end is fixed.

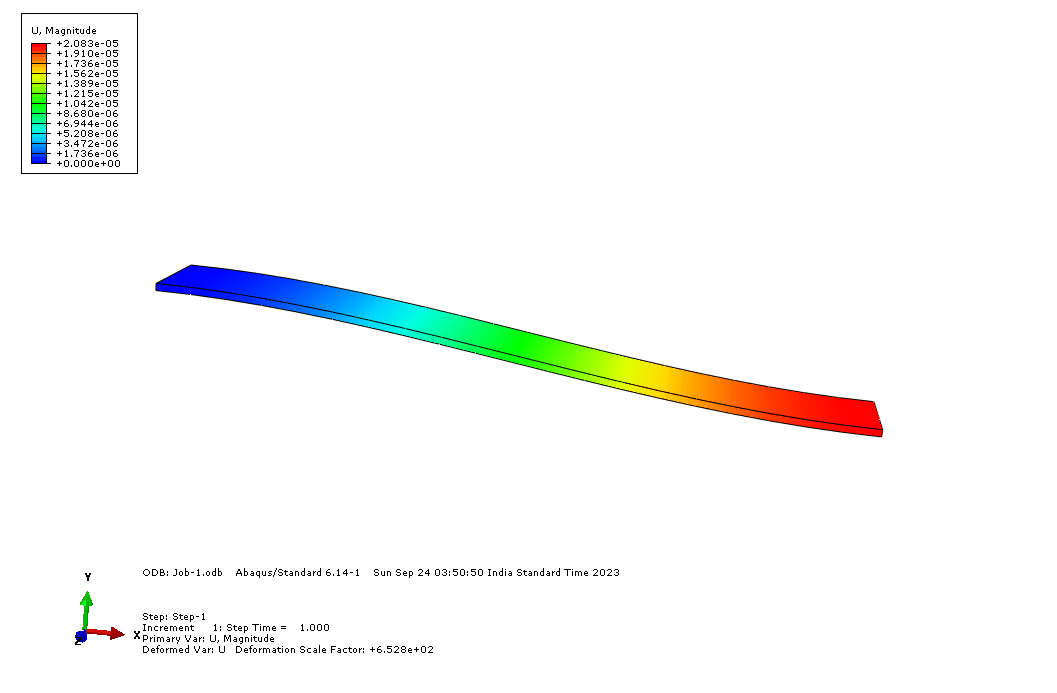

In the other end I am applying forces axially and also in the transverse direction. But I what this end to be rotationally restraint, but can undergo an axial and transverse deflection. The final deformation of the beam will look somewhat like the attached figure.
While I am able to do everything else, i am not able to figure out! how to give a rotational restraint constraint. Someone please help!
Attachments:
Please login with a confirmed email address before reporting spam
There will be options to add contraint type as rotational and translation constraint
-------------------iamrajakumar@iitkgp.ac.in
iamrajakr@gmail.com
Please login with a confirmed email address before reporting spam
Assuming that you are using Solid Mechanics, there are two direct approaches:
Approach 1:
Add aRigid Connectorto the end boundary and constrain its rotation.
Approach 2:
Add aSymmetrycondition to the end boundary, and make use of the settings in itsNormal Direction Conditionsection.
-------------------Henrik Sönnerlind
COMSOL
