Prescribed Displacement

Please login with a confirmed email address before reporting spam

Hi everyone,

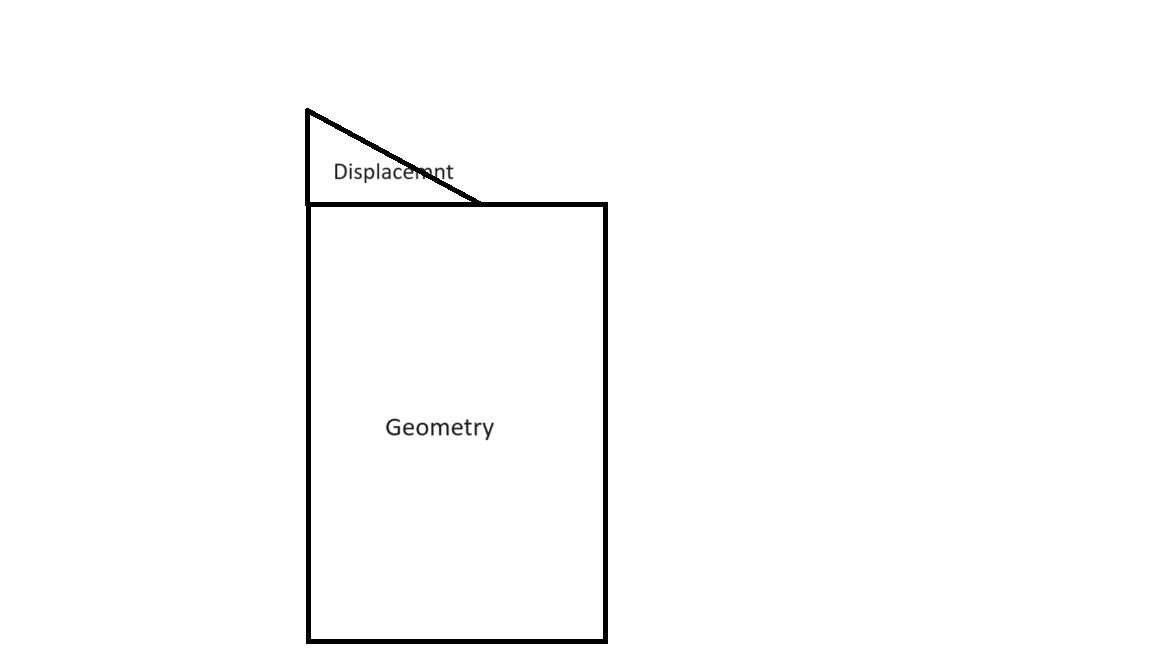

I am trying to solve a prblem of solid mechanics, in which a non uniformly distributred displacement is applied on the edge. Suppose I have a rectangle as geometry and on the top edge I have to apply the displcement which is the function of the x co-ordinate and magnitude is in the y direction (something like as shown in the attached picture).

How I can do that in the comsol, can someone please tell me. I am think to make a function but I don't know how to introduce the x co-ordinate as independent variable in that function or is there any other way to do the same thing.

Thank you, Manish



1 Reply Last Post 2023年12月13日 GMT+1 18:42
Henrik Sönnerlind COMSOL Employee

Please login with a confirmed email address before reporting spam

Posted: 9 months ago 2023年12月13日 GMT+1 18:42

You could add a function, but the easiest is to just type the expression directly as the value for the prescribed displacement. Something like

0.1[mm]*(1-X/5[cm])*(X<5[cm])

-------------------
Henrik Sönnerlind
COMSOL
You could add a function, but the easiest is to just type the expression directly as the value for the prescribed displacement. Something like 0.1[mm]\*(1-X/5[cm])\*(X

Note that while COMSOL employees may participate in the discussion forum, COMSOL®software users who are on-subscription should submit their questions via theSupport Centerfor a more comprehensive response from the Technical Support team.
