How to convert 3D cloud of points into a boundary of a solid to be used to solve the Coefficient Form PDE

Posted 2024年2月26日 GMT+1 14:12Version 5.54 Replies

Małgorzata Jankowska
Send Private Message Flag post as spam

Please login with a confirmed email address before reporting spam

Dear All.

I have a following problem. I have a cloud of points in a format x y z in each row of the text file.

This cloud of points represents a 3D boundary of some soild. I have to read the points, treat them as a boundary of a solid, probably convert to a solid. Then, I have to compute some BVP using: Coefficient Form PDE. My cloud of points represents a 3D boudary.

I have read the post availabe at: https://www.comsol.com/blogs/how-to-convert-point-cloud-data-to-surfaces-and-solids/ but my my situation it does not help.

I will be very grateful for your help. With best regards, Malgorzata

4 Replies Last Post 2024年2月26日 GMT+1 23:06
Jeff Hiller COMSOL Employee

Please login with a confirmed email address before reporting spam

Posted: 6 months ago 2024年2月26日 GMT+1 16:36
Updated: 6 months ago 2024年2月26日 GMT+1 16:36

Hello Malgorzata,

Can you expand on why the blog post does not help in your case?

Jeff

-------------------
Jeff Hiller
Hello Malgorzata, Can you expand on why the blog post does not help in your case? Jeff
Małgorzata Jankowska
Send Private Message Flag post as spam

Please login with a confirmed email address before reporting spam

Posted: 6 months ago 2024年2月26日 GMT+1 22:24

Dear Jeff.

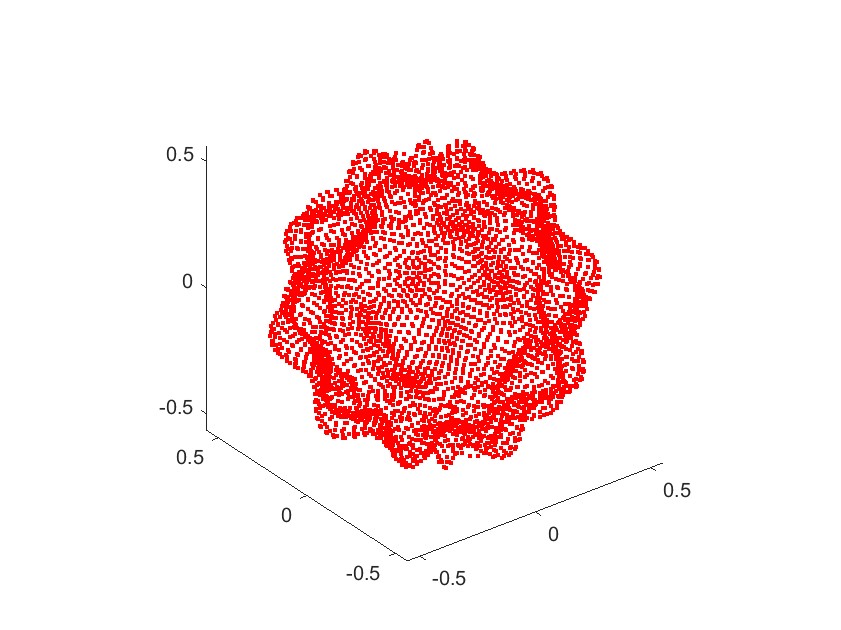

Thank you very much for your quick answer. The post seems to help in a little bit different case, i.e. when we have a cloud of points that form an open surface. In my case a cloud of points looks like a kind of irregular sphere (see the picture enclosed). I tried to change some options in Comsol, but the result seems to be like a surface, not like a 3D boundary. However, you know Comsol much better.

With best regards, Malgorzata

Dear Jeff. Thank you very much for your quick answer. The post seems to help in a little bit different case, i.e. when we have a cloud of points that form an open surface. In my case a cloud of points looks like a kind of irregular sphere (see the picture enclosed). I tried to change some options in Comsol, but the result seems to be like a surface, not like a 3D boundary. However, you know Comsol much better. With best regards, Malgorzata

Attachments:

Jeff Hiller COMSOL Employee

Please login with a confirmed email address before reporting spam

Posted: 6 months ago 2024年2月26日 GMT+1 22:39
Updated: 6 months ago 2024年2月26日 GMT+1 22:39

Why not split the data into several patches that add up to the full surface?

Jeff

-------------------
Jeff Hiller
Why not split the data into several patches that add up to the full surface? Jeff
Małgorzata Jankowska
Send Private Message Flag post as spam

Please login with a confirmed email address before reporting spam

Posted: 6 months ago 2024年2月26日 GMT+1 23:06

Dear Jeff. I am afraid this boundary is rather irregular. The points are generated with some algorithm proposed by my colleague. I am not convinced how to split the data into several patches and if it is even possible. With best regards, Malgorzata

Dear Jeff. I am afraid this boundary is rather irregular. The points are generated with some algorithm proposed by my colleague. I am not convinced how to split the data into several patches and if it is even possible. With best regards, Malgorzata
