slider in contact with a rigid line

Please login with a confirmed email address before reporting spam

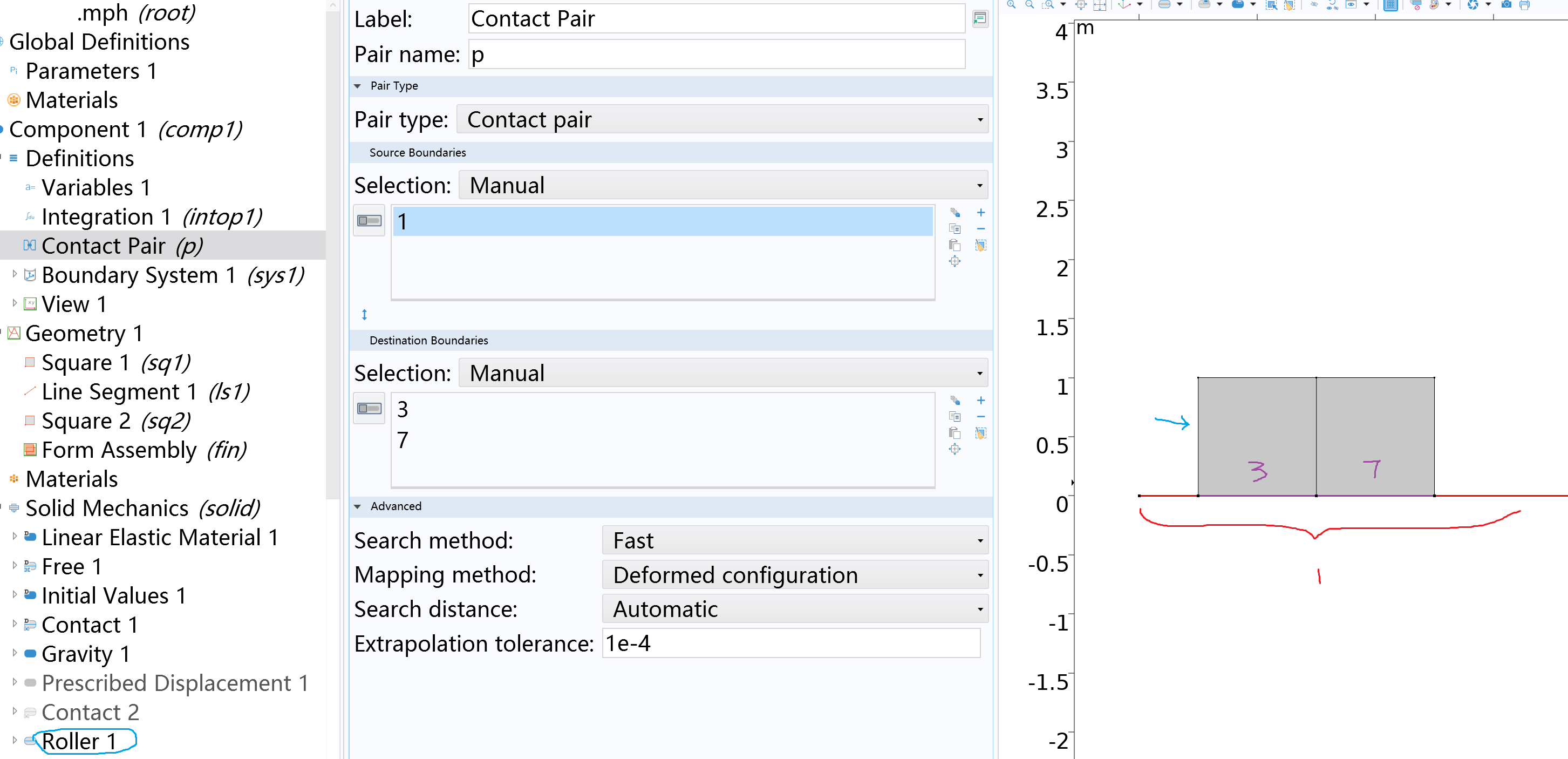

The slider in the figure has different elastic constants on the left and right parts. The two parts form the whole slider so they cannot separate or penetrate. Nor can they shear along the interior boundary. The slider as a downward gravity and a roller boundary condition on the left boundary. A stationary analysis fails and I wonder why? Should one do sth with the "form assembly"?



0 Replies Last Post 2024年4月1日 GMT+2 07:47
COMSOL Moderator

Hello Carl Xu

Your Discussion has gone 30 days without a reply. If you still need help with COMSOL and have an on-subscription license, please visit our Support Center for help.

If you do not hold an on-subscription license, you may find an answer in another Discussion or in the Knowledge Base.
