"Expression" under "Datasets -> a certain dataset" functions or not?

Please login with a confirmed email address before reporting spam

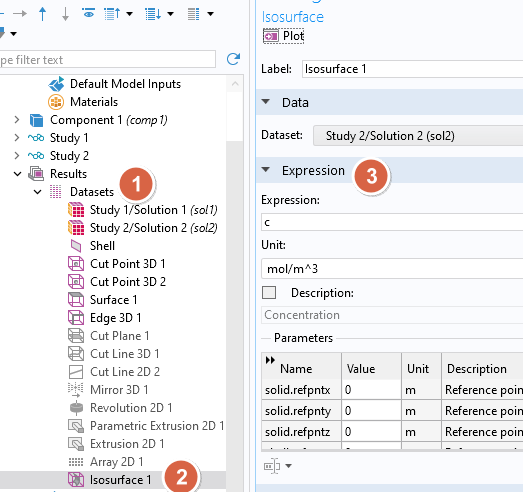

I found that, for the part of "Expression" under "Datasets -> a certain dataset", it's no use to have this part, since no matter plot or export the data, you need to enter the expression again.

Even you plot this dataset, it shows (my guess) just the FEM nodes' distribution, right?

Then my Qs are 1. Does this part do function? What's its function? 2. Plotting the dataset plots simply the FEM distribution, right?



2 Replies Last Post 2024年4月2日 GMT+2 19:35
Gunnar Andersson COMSOL Employee

Please login with a confirmed email address before reporting spam

Posted: 5 months ago 2024年4月2日 GMT+2 18:03
Updated: 5 months ago 2024年4月2日 GMT+2 18:03

TheIsosurfaceandContourdatasets would typically be used when you use one expression in the dataset and another expression in the features that uses the dataset. An example: Suppose that you want to compute the area of the isosurface c=0. Then you can use anIsosurfacedataset where you specify c=0 and aSurface Integrationfeature that refers to theIsosurfacedataset and uses the expression 1. You can also use aSurface Measurementfeature to compute the area.

The **Isosurface** and **Contour** datasets would typically be used when you use one expression in the dataset and another expression in the features that uses the dataset. An example: Suppose that you want to compute the area of the isosurface c=0. Then you can use an **Isosurface** dataset where you specify c=0 and a **Surface Integration** feature that refers to the **Isosurface** dataset and uses the expression 1. You can also use a **Surface Measurement** feature to compute the area.

Jeff Hiller COMSOL Employee

Please login with a confirmed email address before reporting spam

Posted: 5 months ago 2024年4月2日 GMT+2 19:35
Updated: 5 months ago 2024年4月3日 GMT+2 08:54

To illustrate Gunnar's point, the attached file shows how you can use an Isosurface dataset to create a plot of the magnitude of the heat flux on the complicated surface defined by the fact that the temperature equals 300 kelvin on it.

-------------------
Jeff Hiller
To illustrate Gunnar's point, the attached file shows how you can use an Isosurface dataset to create a plot of the magnitude of the heat flux on the complicated surface defined by the fact that the temperature equals 300 kelvin on it.

Reply

Please read thediscussion forum rulesbefore posting.

Pleaselog into post a reply.

Note that while COMSOL employees may participate in the discussion forum, COMSOL®software users who are on-subscription should submit their questions via theSupport Centerfor a more comprehensive response from the Technical Support team.
