Importing Mesh and creating geometry error

Please login with a confirmed email address before reporting spam

I'm going to make meshes for two structures through Creo, and I'm going to bring two meshes from COMSOL and proceed with the interpretation.

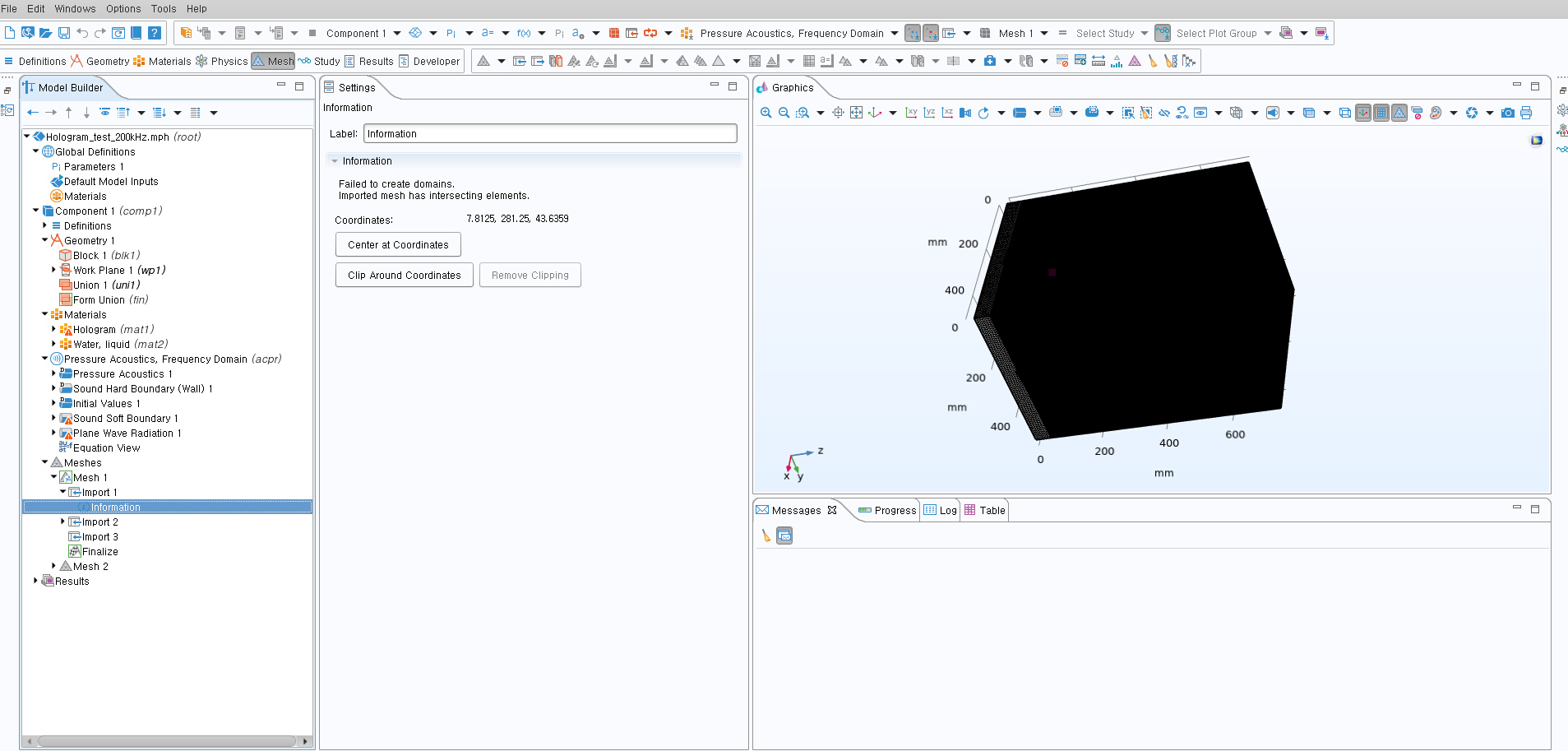

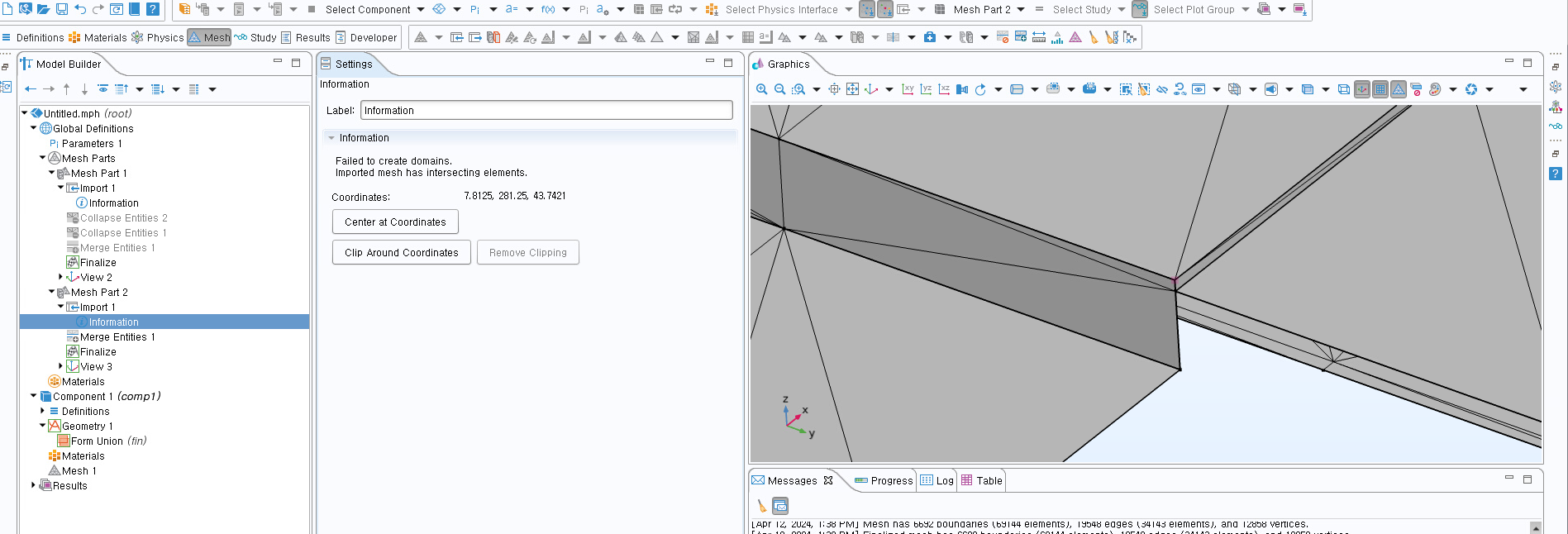

However, there is a problem here: "Failed to create domains. Imported mesh has interfacing elements." For this reason, the structure I brought into Geometry is not implemented, so it is impossible to select materials and physics, so the interpretation cannot proceed.

Can I get some help?

The two .stl files below are the structures I imported. These two files were created by setting the step size to 7.8mm when converting from Creo to stl file.

+The mph file : https://drive.google.com/file/d/19UNH2Kfewb6e0mbF5rWjkvVyZH8fVkW-/view?usp=drive_link



0 Replies Last Post 2024年4月11日 GMT+2 10:08
COMSOL Moderator

Hello Jeonghyun Shin

Your Discussion has gone 30 days without a reply. If you still need help with COMSOL and have an on-subscription license, please visit our Support Center for help.

If you do not hold an on-subscription license, you may find an answer in another Discussion or in the Knowledge Base.
