Plane stress analysis under creep effect

Please login with a confirmed email address before reporting spam

Dear Team,

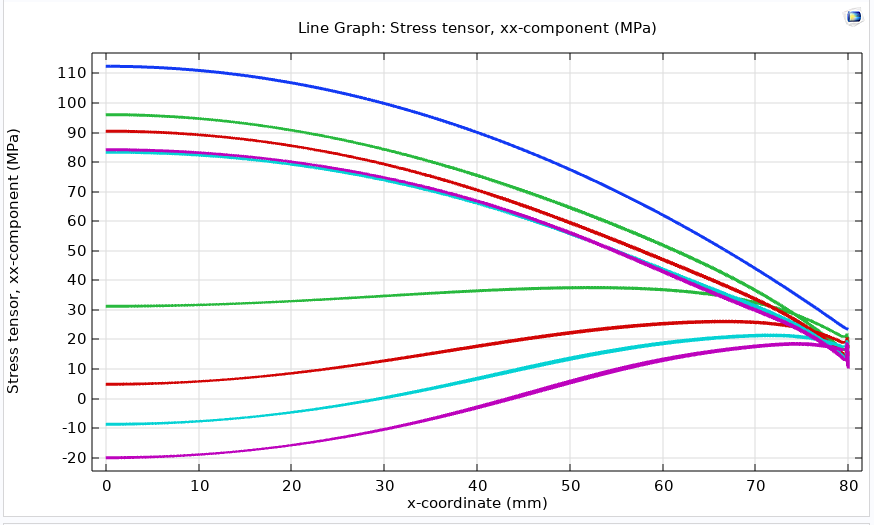

I am currently analyzing a 2D plane stress multilayer beam under the creep effect. I have encountered an issue with the stress distribution on the mid-plane of the first beam layer, where I am obtaining two different values for each position. The attached screenshot illustrates this problem.

Could someone please assist me in resolving this issue?

Thank you for your help.

Best regards,



1 Reply Last Post 2024年6月11日 GMT+2 08:34
Henrik Sönnerlind COMSOL Employee

Please login with a confirmed email address before reporting spam

Posted: 3 months ago 2024年6月11日 GMT+2 08:34

It will be easier to understand your question if you add legends to the curves. Also, are the graphs along a boundary, or a cut line?

Better even would be to a attach the model, or at least a plot of it.

-------------------
Henrik Sönnerlind
COMSOL
It will be easier to understand your question if you add legends to the curves. Also, are the graphs along a boundary, or a cut line? Better even would be to a attach the model, or at least a plot of it.
