Absorbing layer in "Piezoelectric devices"

Posted 2013年3月26日 GMT+1 19:09 MEMS & Nanotechnology, Piezoelectric Devices, Acoustics & Vibrations Version 4.2 0 Replies

Andreas Landig
Send Private Message Flag post as spam

Please login with a confirmed email address before reporting spam

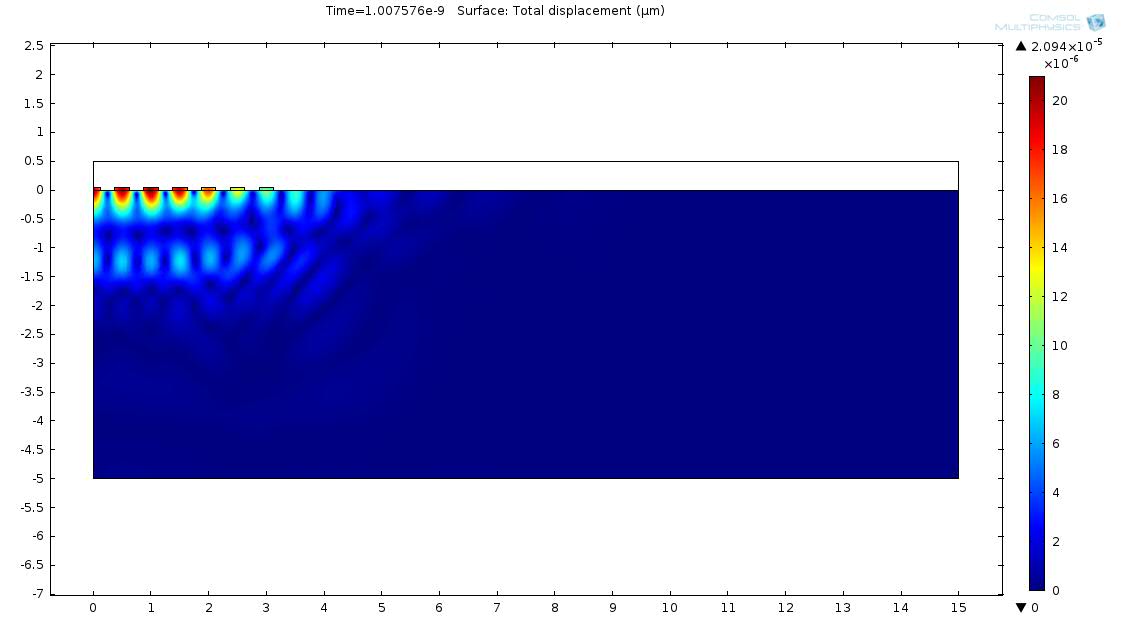

I'm simulating a SAW device with an IDT on top of a slab of ZnO. As seen in the picture, bulk waves are launched as well. What boundary conditions should I have at the bottom if I don't want to have reflections of the bulk waves? It seems that "Perfectly matched layer" should do it, but I don't see that in my options. I only have "Piezoelectric device" physics loaded, do I need to load the whole acoustics module as well?

Also, at the left boundary I have symmetric boundary conditions to effectively show half of the device. Makes sense?

Attachments:

0 Replies Last Post 2013年3月26日 GMT+1 19:09
COMSOL Moderator

Hello Andreas Landig

Your Discussion has gone 30 days without a reply. If you still need help with COMSOL and have an on-subscription license, please visit our Support Center for help.

If you do not hold an on-subscription license, you may find an answer in another Discussion or in the Knowledge Base.
