全耳助听器响应
Application ID: 125831

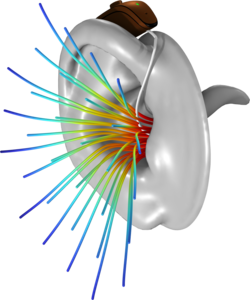

This model demonstrates how to perform a hearing aid acoustic feedback response analysis, including both the in-ear hearing aid and the hearing aid cassette. The hearing aid modeled is a ReSound OMNIA™ device from GN Hearing A/S. The hearing aid is tested on a combined pinna and ear canal and calculates the sound pressure level at the eardrum and compares with measurements. The model also simulates the acoustic field outside the ear and includes the acoustic feedback to the two microphones located on the hearing aid cassette.
The model uses the Pressure Acoustics, Frequency Domain interface and models the loudspeaker with a Lumped Port, while the damping is modeled by Narrow Region Acoustics and Thermoviscous Boundary Layer Impedance in the domains and boundaries where it is appropriate.
案例中展示的此类问题通常可通过以下产品建模:
您可能需要以下相关模块才能创建并运行这个模型，包括：
建模所需的 COMSOL® 产品组合取决于多种因素，包括边界条件、材料属性、物理场接口及零件库，等等。不同模块可能具有相同的特定功能，详情可以查阅技术规格表，推荐您通过免费的试用许可证来确定满足您的建模需求的正确产品组合。如有任何疑问，欢迎咨询 COMSOL 销售和技术支持团队，我们会为您提供满意的答复。
